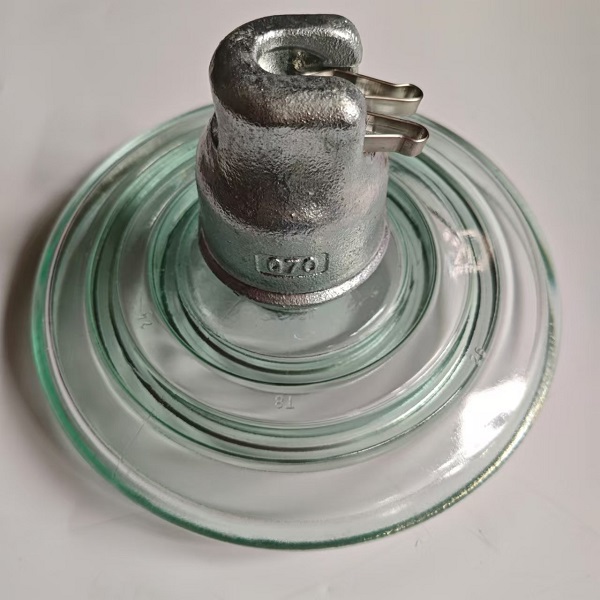

Glass Standard Profile Suspension Insulators LXP-70 / U70BL

Dimensions
Diameter (D): 255mm
Spacing (H): 146mm
Creepage Distance: 320mm
Coupling Size: 16mm

Glass Standard Profile Suspension Insulators LXP-70 / U70BL

Mechanical Values
Mechanical Failing Load: 70kN
Tension Proof: 35kN

Electrical Values
Dry Power-frequency Withstand Voltage: 70kV
Wet Power-frequency Withstand Voltage: 40kV
Dry Lightning Impulse Withstand Voltage: 100kV
Puncture Withstand Voltage: 130kV

Radio Influence Voltage Data
Test Voltage RMS to Ground: 10kV
Maximum RIV at 1000 kHz: 50μV

Packing and Shipping Data
Net Weight, Approximate: 3.5kg
